Sending OTEL metrics to OpenObserve

• Install and Run OpenObserve
• Emit metrics from our code
• Run our code with OTEL env vars set
• View Metrics from OpenObserve
• Next Steps

The usual flow for OTEL metrics (as well as traces, and probably logs) is:

App -> OTEL Collector -> Observability Platform

This works fantastically for large deployments, but for smaller deployments or dev work, it's a pain to set up. Fortunately, we can install a local instance of OpenObserve to act as both the OTEL Collector as well as the Observability Platform. This provides an easy, private way to experiment with OTEL observability, without paying most of the setup costs.

App -> OpenObserve

I really enjoy OpenObserve because the devs intentionally focus on setup ease.

Install and Run OpenObserve

After downloading OpenObserve, start it with command similar to the following (or see the docs if you want to configure it more):

ZO_ROOT_USER_EMAIL=root@example.com \
ZO_ROOT_USER_PASSWORD=pass \
./openobserve

Then head to http://localhost:5080/web/ingestion/recommended/traces?org_identifier=default and note configuration we'll use to connect:

OTLP HTTP

HTTP Endpoint: http://localhost:5080/api/default
Authorization: Basic cm9vdEBleGFtcGxlLmNvbTpabFhiTXZTMENYSEtubzJ4

Emit metrics from our code

Here's some sample Go code to emit metrics:

package main

import (
	"context"
	"fmt"
	"math/rand"
	"os"
	"os/signal"
	"time"

	"go.opentelemetry.io/otel"
	"go.opentelemetry.io/otel/attribute"
	"go.opentelemetry.io/otel/exporters/otlp/otlpmetric/otlpmetrichttp"
	"go.opentelemetry.io/otel/metric"
	sdkmetric "go.opentelemetry.io/otel/sdk/metric"
)

// adapted from https://opentelemetry.io/docs/languages/go/instrumentation/#metrics

const name = "otel_metrics"

var (
	meter       = otel.Meter(name)
	rollCnt     metric.Int64Counter
	durationCnt metric.Float64ObservableCounter
)

func init() {
	rollCnt = must(meter.Int64Counter(
		"dice.rolls",
		metric.WithDescription("The number of rolls by roll value"),
		metric.WithUnit("{roll}"),
	))
	durationCnt = must(meter.Float64ObservableCounter(
		"uptime",
		metric.WithDescription("The duration since the application started."),
		metric.WithUnit("s"),
	))
}

func must[T any](v T, err error) T {
	if err != nil {
		panic(err)
	}
	return v
}

func main() {
	start := time.Now()

	ctx, cancel := signal.NotifyContext(context.Background(), os.Interrupt)
	defer func() {
		fmt.Println("calling cancel")
		cancel()
	}()

	// can also use a stdout exporter
	// metricsExporter := must(stdoutmetric.New(stdoutmetric.WithPrettyPrint()))
	metricsExporter := must(otlpmetrichttp.New(context.Background()))
	meterProvider := sdkmetric.NewMeterProvider(
		sdkmetric.WithReader(
			sdkmetric.NewPeriodicReader(
				metricsExporter,
				sdkmetric.WithInterval(5*time.Second),
			),
		),
	)
	defer func() {
		fmt.Println("calling meterProvider shutdown")
		_ = meterProvider.Shutdown(context.Background())
	}()
	otel.SetMeterProvider(meterProvider)

	// Register the observable counter
	// This callback is called every time the metrics provider exports (in our case every 5 seconds)
	reg := must(meter.RegisterCallback(
		func(_ context.Context, observer metric.Observer) error {
			observer.ObserveFloat64(
				durationCnt,
				time.Since(start).Seconds(),
				metric.WithAttributes(
					attribute.String("key", "value"),
				),
			)
			return nil
		},
		durationCnt,
	))

	defer func() {
		fmt.Println("calling meter unregister")
		reg.Unregister()
	}()

	ticker := time.NewTicker(1 * time.Second)
	defer func() {
		fmt.Println("calling ticker stop")
		ticker.Stop()
	}()
	for {
		select {
		case <-ctx.Done():
			fmt.Println("context done")
			return
		case <-ticker.C:
			fmt.Println("rolling dice")
			roll := 1 + rand.Intn(6)
			// use the synchronous counter
			rollCnt.Add(ctx, 1, metric.WithAttributes(
				attribute.Int("roll.value", roll),
			))
		}
	}
}

The most important bit here is the exporter set up:

metricsExporter := must(otlpmetrichttp.New(context.Background()))

This tells our code to export our metrics over HTTP. We'll use env vars to tell the collector where to send these metrics.

Run our code with OTEL env vars set

Next, we need to run our app with the appropriate exporter OTEL_* env vars set so it can connect to our local OpenObserve instance:

OTEL_EXPORTER_OTLP_ENDPOINT='http://127.0.0.1:5080/api/default' \
OTEL_EXPORTER_OTLP_HEADERS='Authorization=Basic cm9vdEBleGFtcGxlLmNvbTpabFhiTXZTMENYSEtubzJ4,organization=default,stream-name=default' \
go run .

View Metrics from OpenObserve

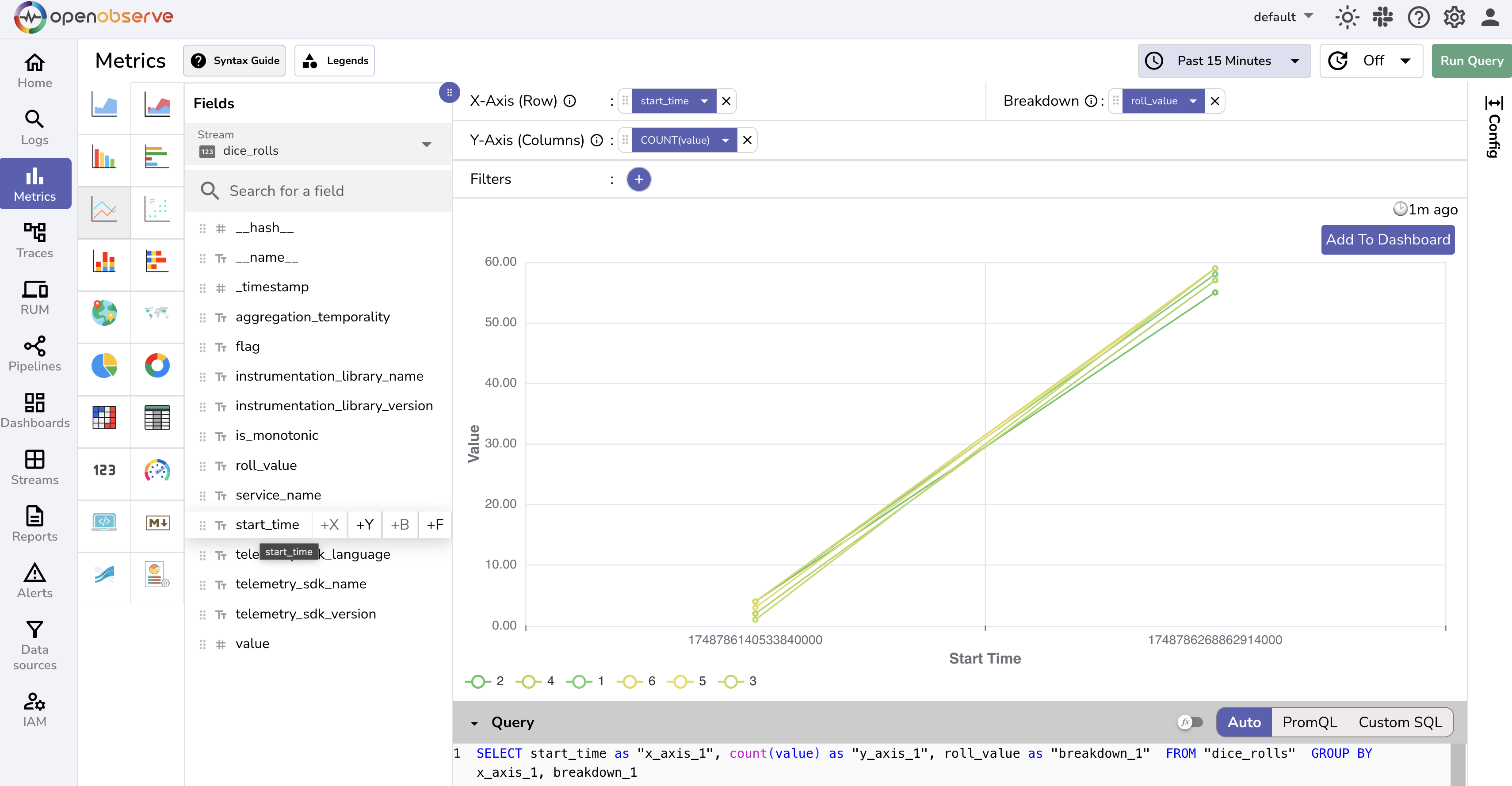

Head to the metrics tab, and run a query. I like to use "Auto" and click the values in the sidebar to form my graph:

In this screenshot, I:

• selected the dice_rolls stream
• changed the query method to "Audo"
• Clicked +X for start_time
• Clicked +B for roll_value
• Clicked +Y for value
• Clicked "Run Query"

As expected, we can see that our dice is fair - in that timespan and several rolls, each number continues to show an equal probability of being rolled.

Next Steps

Of course, this is the bare minimum to get started with OTEL and OpenObserve. Further ideas:

• Skip the local install step and send metrics to OpenObserve Cloud
• Install OpenObserve on a server you control (I do this with Ansible)
• Create an org instead of using the default one like this post does
• Send traces / logs to OpenObserve as well!
• Make a dashboard with these metrics
